      Alexander,

      The latest revision (v4.4.4.4) alters the handling of Tooltips…

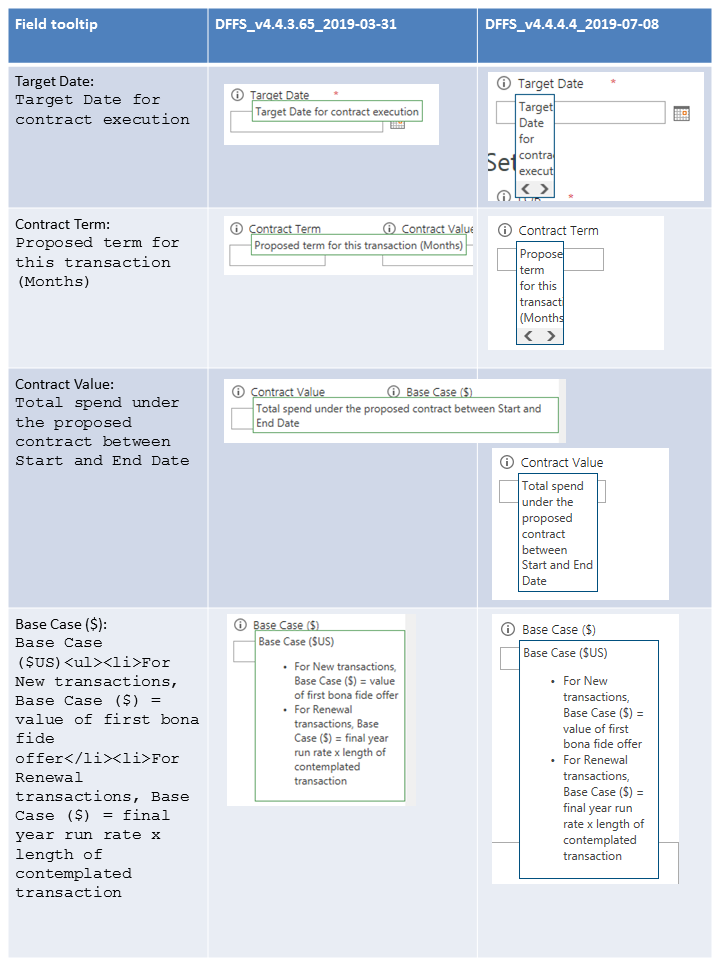

      I’ve found that the sizing of the floating Tooltip box is a problem, as illustrated in the image below. In comparison to v4.4.3.65, the boxes are smaller horizontally, causing a scroll-bar at bottom that is very small and difficult to manipulate.

      In my configuration, I had changed the color of the dialog header (on-click) and boarder as follows (on-hover):



      /* Header of tooltip call-out */
      div.tooltipHolderHead {
          background-color: #5fa364;
      }

      /* Border color of tooltip call-out */
      span.tooltipContents {
          border: 1px #5fa364 solid;
      }

      My current state is that I have rolled back to v4.4.3.65.

      Thank you for your support and efforts!

      R’grds – Ben.
      Reference:
      Attempting:
      Version information
      DFFS frontend: 4.4.4.4 – August 07, 2019
      DFFS frontend CSS: 4.49 / 4.49
      Autocomplete: 1.6.36 – July 31, 2019
      Cascading dropdowns: 3.7.30 – July 21, 2019
      jQuery: 1.12.4
      Lookup: 1.1.17 – July 21, 2019
      Resource management: not loaded
      SPJS-Utility: 1.336 – July 21, 2019
      vLookup: 2.2.135 – July 31, 2019

      Rollback:
      Version information
      Custom DFFS-folder: DFFS_v4.4.3.65_2019-03-31
      DFFS frontend: 4.4.3.65 – March 31, 2019
      DFFS frontend CSS: 4.46 / 4.46
      Autocomplete: 1.6.28 – January 12, 2019
      Cascading dropdowns: 3.7.26 – March 31, 2019
      jQuery: 1.12.4
      Lookup: 1.1.16 – March 05, 2019
      Resource management: not loaded
      SPJS-Utility: 1.332 – March 05, 2019
      vLookup: 2.2.129 – March 07, 2019

    • #26542
      Alexander Bautz
      Keymaster

      Sorry about that – I obviously didn’t test all sizes of tooltips. Can you try this snippet in your Custom JS to see if it calculates better?

      Please note that you must use the new v4.4.4.4 to test it – I don’ think it will work in the old version.

      spjs.dffs.showTooltip = function (elm) {
          var id = jQspjs(elm).attr('fin'), val, inner = jQspjs("#tooltipHolderInner");
          jQspjs(inner).css({ "width": "auto" }).html("");
          if (spjs.dffs.fields[id] !== undefined) {
              jQspjs("#tooltipOuterWrap").prependTo(jQspjs(elm).parent());
              val = spjs.dffs.buildValStr(spjs.dffs.data.tooltipObj[id]);
              val = spjs.dffs.translateStringWithJSON(val);
              jQspjs("#tooltipOuterWrap").show();
              jQspjs(inner).html(val);
              jQspjs("#tooltipPlaceholder").css({ "display": "inline", "position": "absolute", "top": 20, "left": 20 }).stop(true, true).fadeIn(200, function () {
                  var h, w, tot, nw;
                  h = jQuery(inner).height();
                  w = jQuery(inner).width();
                  // Calculate aspect ratio
                  tot = h + w;
                  if (tot < 200) {
                      nw = tot + 10;
                  } else {
                      nw = (tot / 5 * 3) + 10;
                  }
                  jQuery(inner).css({ "width": nw + "px" });
              });
          }
      };

      Alexander

    • #26599
      Alexander Bautz
      Keymaster

      I have addressed this issue in v4.4.4.5 – please check it out: https://spjsblog.com/2019/08/12/dffs-package-updated-to-v4-4-4-5/

      Alexander

    • #26659
      BenR
      Participant

      Alexander,

      This correction in v4.4.4.5 has addressed this issue nicely!

      I found that I did not need to use the width override at all – your default method of width calculation worked quite well for my Tooltips throughout my forms (both short and long, multiline Tooltips).

      As always, your support and efforts are appreciated!

      R’grds – Ben.
      P.S.: I’ve now upgraded to v4.4.4.5 in production!

    • #26665
      Alexander Bautz
      Keymaster

      Thanks for the feedback – I’m glad it worked out.

      Alexander
