Form Rules

[Silvestre Kassoka]

Good Alex,

I am working on a form which I need to do a couple of this but i do not know how,

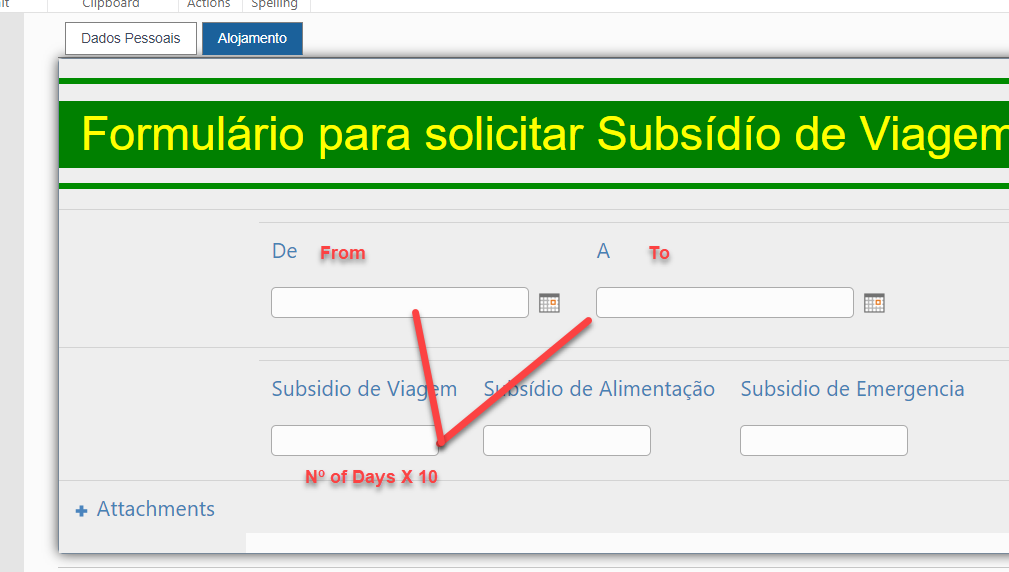

a) I have a calculated field which give me number of days between two dates which i want displayed on the display form and also to be used to calculate a value based on the number of days. For example , if number of days is = 6 i want to have another field populated with 6 x a fixed value say (10) (annex Rules 1)
Basically i want to make a Rule based on two IF conditions

i) If value in a certain field is selected and Date Fields ( From and TO) are
selected ascertain the value of another field by making a calculation ( difference between (TO and From ) X 10.

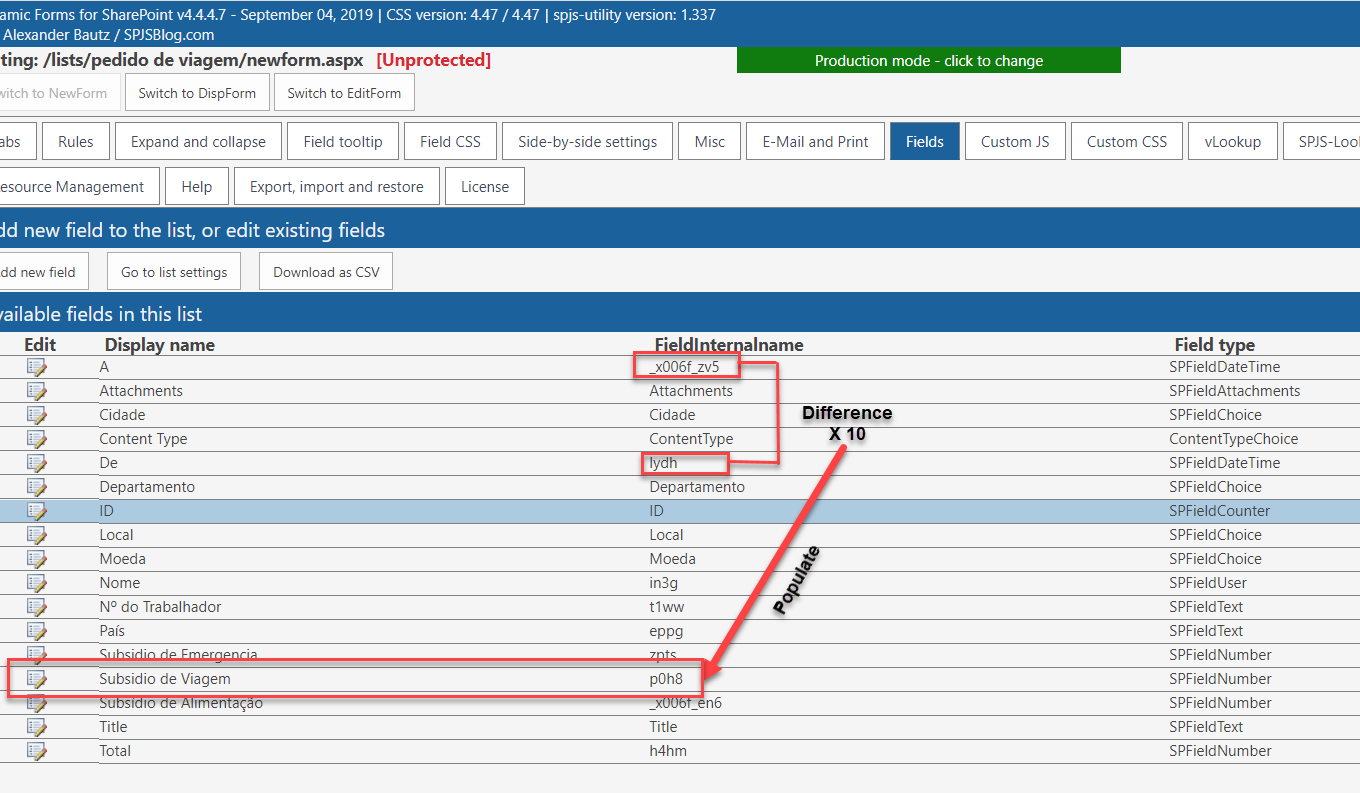

I have also attached Field Names for more clarity.

Thanks in advance

Attachments:

1.



2.



[Alexander Bautz]

Sorry for the late reply. I’ll look at this tomorrow morning and give you an answer.

Best regards,
Alexander

[Alexander Bautz]

To do this you must use custom js. Add this to your Custom JS in the NewForm or EditForm where you want to do the calculation.

function dffs_PreSaveAction() {
    var d1 = spjs.utility.getDateFieldAsDateObject("DateColumn1");
    var d2 = spjs.utility.getDateFieldAsDateObject("DateColumn2");
    if (d1 > d2) {
        spjs.dffs.alert({
            "title": "Error",
            "msg": "From date must be before to date.",
            "ok": function () {
                // Close dlg
            }
        });
        return false;
    }
    var diff = Math.floor((d2 - d1) / 86400000);
    var x10 = diff * 10;
    setFieldValue("write_to_field", x10);
    return true;
}

Replace DateColumn1, DateColumn2 and write_to_field with your field internal names.

This code will run on save and write the diff * 10 to the field write_to_field.

Let me know how this works out.

Alexander

[Silvestre Kassoka]

Hi Alex,

I tried it but i am getting an NaN of the set field.I do not know if i am doing something wrong.

Attachments:

1.



[Alexander Bautz]

You must add some logging to the function to see what is going on – hit f12 to open the developer tools, select “Console” and paste this modified version of the script:

function dffs_PreSaveAction() {
    var d1 = spjs.utility.getDateFieldAsDateObject("DateColumn1");
    console.log(d1);
    var d2 = spjs.utility.getDateFieldAsDateObject("DateColumn2");
    console.log(d2);
    if (d1 > d2) {
        spjs.dffs.alert({
            "title": "Error",
            "msg": "From date must be before to date.",
            "ok": function () {
                // Close dlg
            }
        });
        return false;
    }
    var diff = Math.floor((d2 - d1) / 86400000);
    console.log(diff);
    var x10 = diff * 10;
    console.log(x10);
    setFieldValue("write_to_field", x10);
    return true;
}
// call the function directly
dffs_PreSaveAction();

Remember to change the field internal names with your fields.

What does it output in the console?

Alexander

[Silvestre Kassoka]

Hi Alex,

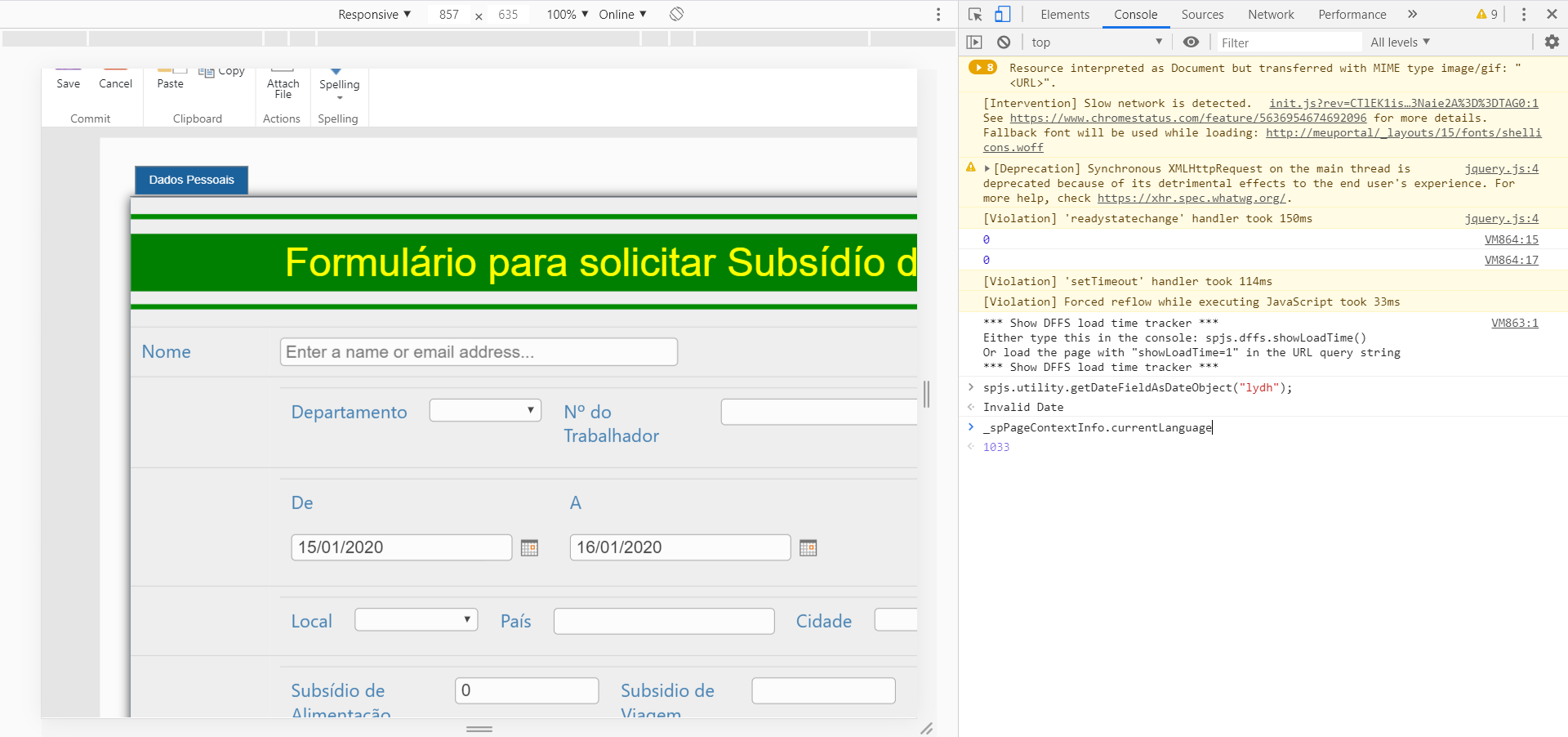

From the Logging the date value seem to returning as 0 please see the print screen
attached.

Attachments:

1.



[Alexander Bautz]

Try opening the console and type in only this line:

spjs.utility.getDateFieldAsDateObject("lydh");

Also, add this line of code and let me know what locale you are using:

_spPageContextInfo.currentLanguage

Alexander

[Silvestre Kassoka]

Hi Alex,

The date value is not being returned. ( invalid date).Please
see print screen.

Regards

Attachments:

1.



[Alexander Bautz]

OK, just to ensure it is the correct field name – try this:

getFieldValue("lydh");

Alexander

[Silvestre Kassoka]

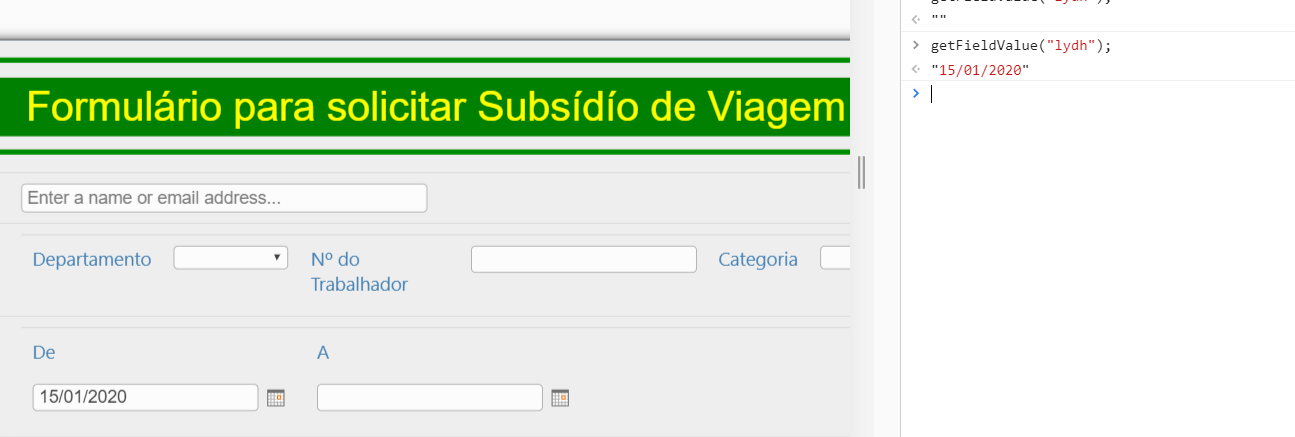

The getFieldValue returns the date.
Regards

Attachments:

1.



[Alexander Bautz]

I’m not sure why the function does not work, but it looks like your date format is not US English – maybe the function misses your date format. Can you try right clicking the calendar icon and selecting inspect and show me a snippet like the one attached.

To work around this you can modify the function replacing the two first variables with this:

var r1 = jQuery("#dffs_DateColumn1 input").val().split("/");
var d1 = new Date(r1[2],(r1[1]-1),r1[0]);
var r2 = jQuery("#dffs_DateColumn1 input").val().split("/");
var d2 = new Date(r2[2],(r2[1]-1),r2[0]);

Alexander

Attachments:

1.



[Silvestre Kassoka]

Here goes,

Attachments:

1.



[Alexander Bautz]

Thanks, it looks like I have the wrong date format for LCID = 2070 in my function. Try setting this ABOVE where you insert the function in Custom JS and see if my original function works now:

spjs.dffs.data.lcidToDateFormat["2070"] = "d/m/y";

Alexander

[Silvestre Kassoka]

Hi Alex,

After inserting the above code the intial code works like a charm.!!

Thank you so much!

[Alexander Bautz]

Thanks for the update – I’ll include this fix in the next version, but you can keep your code as is even if you update to the new version – the line used to override the 2070 LCID won’t interfere.

Alexander
